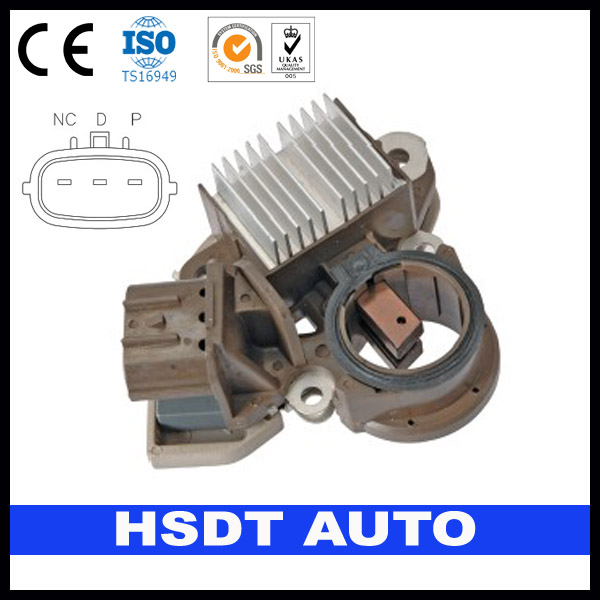

MITSUBISHI Auto Alternator Voltage Regulator  IM505

Specs for: MITSUBISHI Systems

Used on: Mitsubishi ED/IF Alternators
Specs: 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Vset
Features: With capacitor plate; Stator activated
Replaces: Mitsubishi A866X50572 (stamped 505)
Unit #s: Mazda AJ51-18-300, -300A, Mitsubishi A3TJ0191, A3TJ0291
Lester #s: 11006, 11007

Feature

Mitsubishi ED/IF Alternators

12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Vset

3-pin connector but only D-P are used:
(N/C) = No connection
D = Drive
P = Phase
IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type

Used On

(2008-02) Mazda
