Products > Auto Rectifier > > BOSCH alternator rectifier IBR304

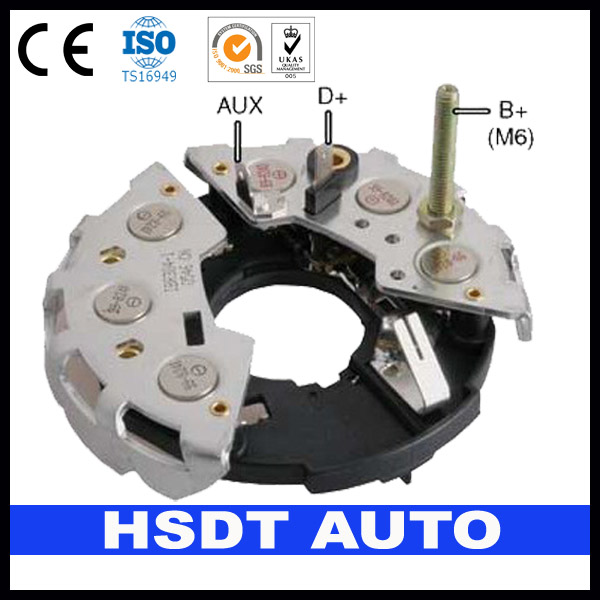

Product name : BOSCH alternator rectifier IBR304
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Specifications


BOSCH Rectifier
High Quality
Fast Delivery
Free Samples
Great Service



Product Detailes Description:

BOSCH alternator rectifier  IBR304HD

REC BO
Diodes: 6-40 Ampere
Diameter OD: 114 mm
• With M6x33mm Battery Post
• With Trio
• For 35-55 A Alternators
FOR USE ON:
(1994-71) Alfa Romeo, Audi, BMW, Fiat, Lancia, Opel, Peugeot, Pontiac, Saab, VW, Volvo

Original Number
AUDI/VW
046903359,046903359A,
056903359,056903371B,
BMW
12311266720,12311268409,
12311268415,12311279597,
12311356060,12311358048,
12311363097,12311706465,
BOSCH
1127011117,1127011118,
1127011119,1127011120,
1127011121,1127011123,
1127011124,1127011125,

IBR304-1
(Ref. No: 31-9101)
Rectifier
For: Bosch 400, 489 Series 35-70A ER/EF, IR/EF Alternators
Unit Nos: Bosch 0-120-011-742; 0-120-288-252, -253; 0-120-400-740, -741, -742, -743, -771, -772, -782, -783, -827, -828, -831, -832, -833, -834, -838, -839, -840, -841, -849, -850, -852, -853, -854, -855, -870, -871, -889, -890, -910, -911, -912, -913, -914, -915, -921, -922, -926, -927, -928, -932, -933, -938, -939; 0-120-484-019, -021; 0-120-488-102, -103, -123, -129, -139, -141, -151, -152, -211, -221, -235, -252, -253, -254, -274, -275, -276, -287; 0-120-489-021, -028, -029, -030, -031, -036, -037, -038, -039, -040, -041, -042, -043, -044, -045, -046, -057, -058, -065, -066, -072, -073, -084, -086, -087, -104, -105, -108, -109, -110, -111, -114, -115, -116, -117, -118, -119, -120, -121, -122, -123, -124, -125, -126, -127, -128, -129, -130, -131, -135, -136, -137, -138, -139, -142, -143, -152, -153, -154, -155, -167, -171, -174, -182, -187, -188, -189, -191, -193, -194, -212, -217, -218, -219, -220, -258, -259, -263, -272, -273, -279, -285, -297, -307, -318, -319, -339, -348, -350, -351, -353, -358, -394, -400, -401, -410, -411, -412, -413, -421, -422, -423, -424, -450, -455, -485, -486, -487, -498, -533, -534, -537, -538, -543, -544, -549, -550, -575, -576, -577, -578, -585, -586, -606, -607, -608, -609, -610, -611, -612, -613, -614, -615, -625, -626, -627, -628, -629, -630, -631, -632, -633, -634, -635, -636, -637, -638, -639, -640, -641, -642, -644, -645, -646, -647, -648, -649, -650, -651, -652, -653, -654, -655, -656, -657, -659, -660, -661, -682, -685, -686, -687, -688, -708, -709, -715, -716, -717, -718, -735, -736, -737, -738, -739, -752, -753, -759, -760, -762, -766, -767, -768, -769, -780, -781, -782, -792, -793, -794, -795, -796, -812, -813, -823, -824, -836, -837, -874, -875, -876, -877, -879, -880, -903, -904, -905, -906, -942, -943, -946, -947, -948, -949, -950, -951, -952, -955
Lester Nos: 12048, 134;13018, 050, 071, 079, 101, 102, 109, 112, 113, 115, 119, 129, 150, 151, 152, 156, 206, 219, 236, 248, 379, 607; 14046, 057, 070, 392, 395, 538, 539, 595, 605, 769, 781
WAI Ref. Nos: 1-1267-01BO, 1-1268-01BO, 1-1273-01BO, 1-1274-01BO, 1-1275-01BO, 1-1280-01BO, 1-1281-01BO, 1-1282-00BO, 1-1289-01BO, 1-1290-01BO, 1-1291-01BO, 1-1304-01BO, 1-1337-01BO, 1-1338-01BO, 1-1343-01BO, 1-1344-01BO, 1-1347-01BO, 1-1348-01BO, 1-1350-01BO, 1-1449-01BO, 1-1474-01BO, 1-1522-01BO, 1-1535-01BO, 1-1603-01BO, 1-1847-01BO
Dim: 114mm OD
M6 x 1.0 x 33mm Batt. Term.
Note: Without W-terminal. With diode trio.
For heavy duty version use IBR304HD-1.
Similar to IBR301-1 except IBR301-1 w/ W-terminal.
Features:
- Transpo
- 6-40A, 13mm press-fit diodes
