Products > Auto Rectifier > > BOSCH alternator rectifier IBR319
Product name : BOSCH alternator rectifier IBR319
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Specifications


BOSCH Auto Rectifier
High Quality
Fast Delivery
Free Samples
Great Service



Product Detailes Description:

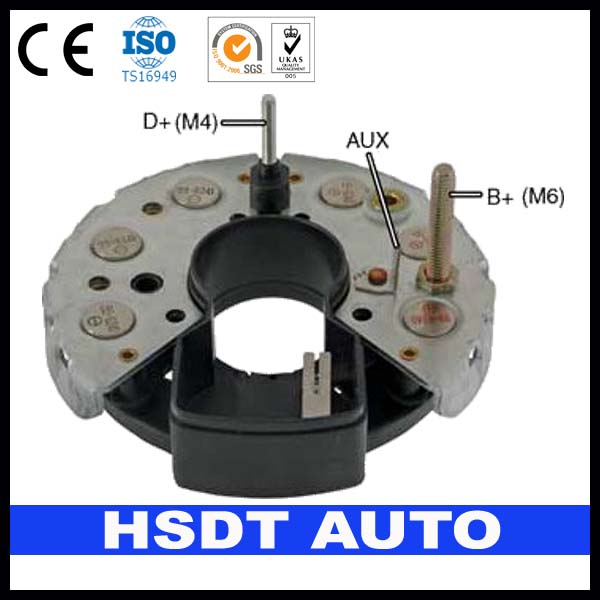

BOSCH auto alternator rectifier  IBR319

(Ref. No: 31-9145)
Rectifier  IBR319
For: Bosch 489 Series 45-55A ER/EF, IR/EF Alternators
Used On: John Deere
Unit Nos: Bosch 0-120-489-643, 0-120-489-704
Dim: 114mm OD
M4 x 0.7 x 19mm D+ Term. (Trio)
M6 x 1.0 x 33mm Batt. Term.
Note: With diode trio.
Features:
- Transpo
- 6-40A diodes

• For 45-65 A Alternators

FOR USE ON:
VW, John Deere
Original Number

BOSCH
1127320668
For use on ALTERNATORS:
BOSCH
0120488125,0120489156,
0120489643,0120489703,
0120489704,0986033320,
