Products > Auto Rectifier > > MAGNETI MARELLI alternator rectifier IXR692-1

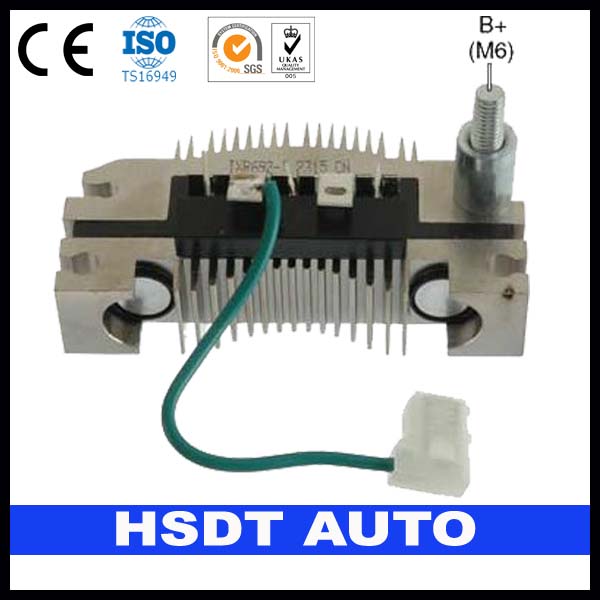

Product name : MAGNETI MARELLI alternator rectifier IXR692-1
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Specifications


Auto Alternator Rectifier
1,High Quality
2,Fast Delivery
3,Free Samples
4,Great Service



Product Detailes Description:

Auto spare parts MAGNETI MARELLI alternator rectifier  IXR692-1

Features:

IXR692-1
(Ref. No: 31-9305)
Rectifier
For: Marelli 30-55A Alternators
Used On: Alfa Romeo, Autobianchi, Fiat, Fiatallis, Iveco, Lamborghini, Lancia, Lister-Petter, Seat, Simit, Unic Motore
Unit Nos: Marelli 63305206, 431; 63306000, 300; 63311775; 63320001, 002, 003, 004, 005, 006, 007, 008, 010, 012, 021, 022, 023, 024, 025, 028, 030, 031, 034, 047, 052, 053, 056, 057, 073, 091, 094, 097, 102, 112, 118; 63321000, 001, 002, 003, 004, 005, 006, 007, 008, 009, 010, 011, 013, 015, 016, 028, 029, 035, 036, 037, 039, 041, 042, 044, 045, 046, 047, 048, 049, 050, 052, 055, 058, 059, 060, 061, 063, 067, 071, 078, 079, 080, 095, 097, 102, 103, 107, 109, 110, 112, 113, 137, 138, 159, 165, 171, 172, 175, 176, 189, 197, 428
Lester Nos: 12026, 14294
WAI Ref. Nos: 1-1343-01MM
Dim: M6 x 1.0 Batt. Term.
17.5mm Thk. Heat Sink
Note: With diode trio and lead
Features:
- Transpo
- 6-25A diodes

Replaces

LUCAS
21222124

UBB812
MAGNETI MARELLI
63621501

74877471
74878691

PRD4A
RDD15
VL-DUCELLIER
593054

For use on ALTERNATORS:
FIAT
5999868

5999869
7533853

7541822

FOR USE ON: Alfa Romeo, Autobianchi, Fiat, Fiatallis, Iveco, Lamborghini, Lancia, Lister-Petter, Seat, Simit, Unic Motore
